SFFECO’s Automatic Fire Extinguishers also know as modular type extinguishers are developed with the latest design and up to date sprinkler technology. The robust structure of the equipment comes with a strong construction made by the best grade of steel.
The sprinkler heads used in the Automatic Extinguishers are of the highest precision with the most advanced thermo safety device, which are available in various temperatures.
When there is a fire event, the extinguishing agent is automatically ejected through the sprinkler head after release of the thermo safety device on reaching a pre-defined temperature. The agent is showered through the sprinkler head with utmost force and the fire is extinguished.

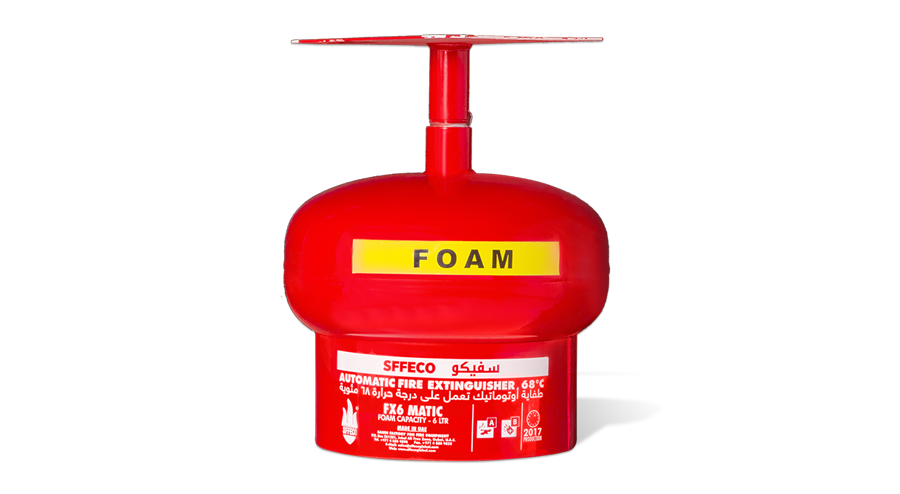

Automatic Foam Extinguishers
Automatic Foam Extinguishers (AFFF – Aqueous Film Forming Foam) works by firstly applying a film forming foam (bubbles) to the fire which causes a blanket over the fire, suffocating the fire, while almost simultaneously cooling the fire.
CLASSES OF FIRE
| FX4.5 MATIC | FX6 MATIC | FX10 MATIC | FX12 MATIC | FX15 MATIC | FX20 MATIC | FX25 MATIC | FX30 MATIC | |
|---|---|---|---|---|---|---|---|---|
| Capacity | 4.5 Kg | 6 Kg | 10 Kg | 12 Kg | 15 Kg | 20 Kg | 25 Kg | 30 Kg |
| Extinguishing Agent | AFFF | AFFF | AFFF | AFFF | AFFF | AFFF | AFFF | AFFF |
| Propelling Agent | Nitrogen | Nitrogen | Nitrogen | Nitrogen | Nitrogen | Nitrogen | Nitrogen | Nitrogen |
| Working Pressure | 12 - 15 Bar | 12 - 15 Bar | 12 - 15 Bar | 12 - 15 Bar | 12 - 15 Bar | 12 - 15 Bar | 12 - 15 Bar | 12 - 15 Bar |
Features
- Available in
- 68°C Temperature Sprinkler head
- 79°C Temperature Sprinkler head
- 93°C Temperature Sprinkler head
Applications
- Engine Compartments
- Switch Rooms
- Boats
- Engine Rooms
- Flammable Liquid Stores
- Plant rooms
- Indoor use
