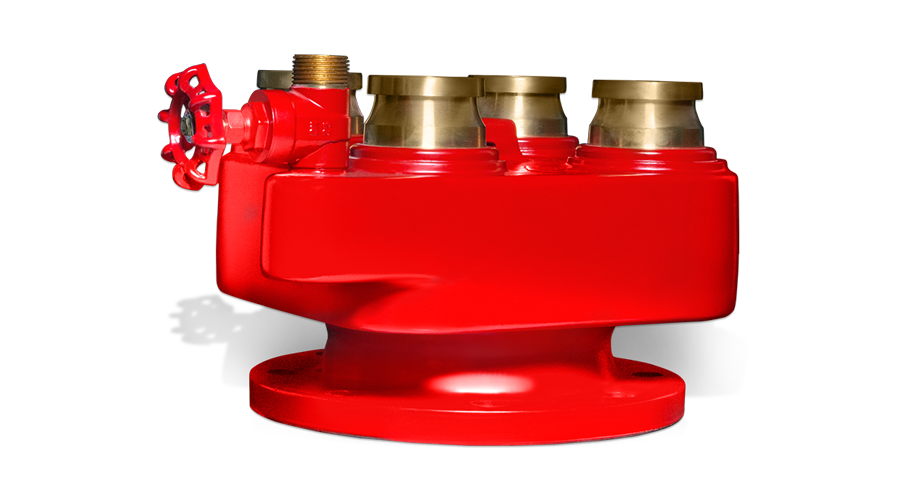

4 Way Breeching Inlet
For any interests or questions regarding SFFECO products & services, please click below.
Send EnquiryIntroduction

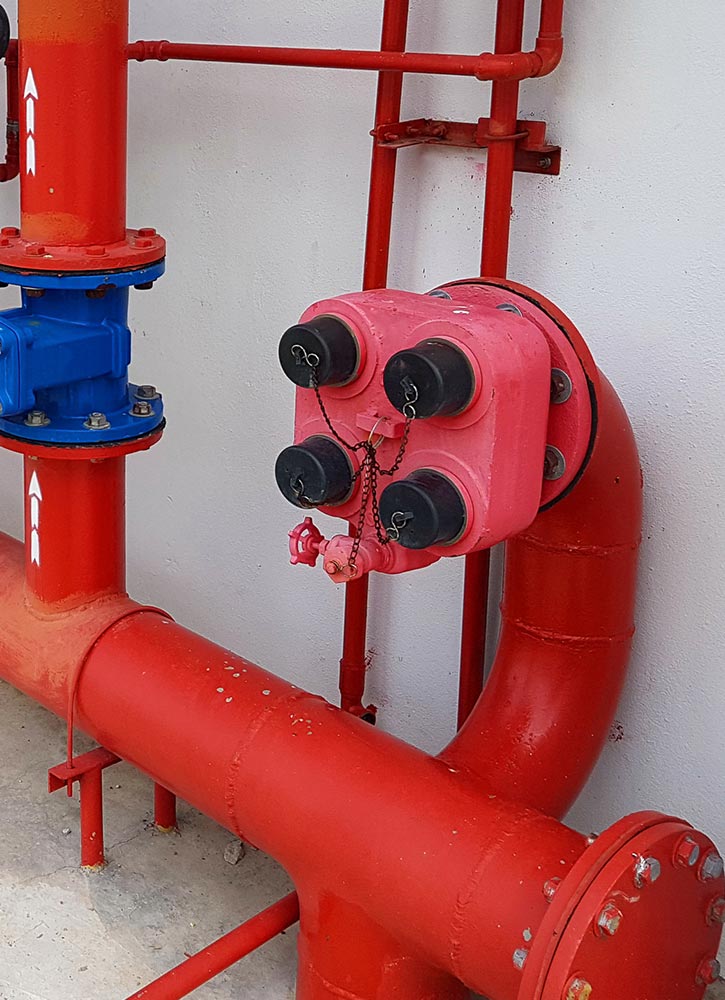

4 Way Breeching Inlet are installed outside the building or any easily accessible area in the building for fire brigade personnel to access the inlet. This inlet is used by the fire brigade personnel to access water. It is normally dry but is used to pump water by charging using many fire fighting equipment
SFFECO’s Breeching Inlets are KITEMARK certified. Breeching Inlets are also commonly known as Fire Department Connection.
| Model | Size | H (mm) | W (mm) | D (mm) | Connections |
|---|---|---|---|---|---|
| KM-BI4W | DN150 | 230 | 330 | 150 | 4 x BS336 |
Specifications
Standard : Certified to BS5041-3
Body : Ductile Iron
Drain Valve : 1” Gate Valve BS 5154
Non-Return Test : 1.7 Bar
--
Inlet : Copper Alloy to BS1400
Blank Cap : Plastic
Working Pressure : 15 Bar
Test Pressure : 20 Bar
