EJ Type - Standard Pumps

SFFECO Standard Pump Packages are offered in complete skid mounted units. Each skid unit includes High Quality Horizontal Split Case or End Suction pumps which are coupled with Heavy duty drivers, Electric Motor or Diesel Engine. The accessories are also assembled in the same unit and skid, like Gate Valves, Check Valves, Flexible Joint, Pressure Switches and Pressure Guage, are fitted along with supporting header. All these components are pre-piped, wired and fabricated on a Common Compact Skid, and are operated as a fully automatic unit via the use of the latest design of Control Panels.

We provide innovatively designed combinations & models to suit customer and project requirements. We are also equipped to provide customized design and solutions for and special hazard applications. We have different combinations which are detailed below.

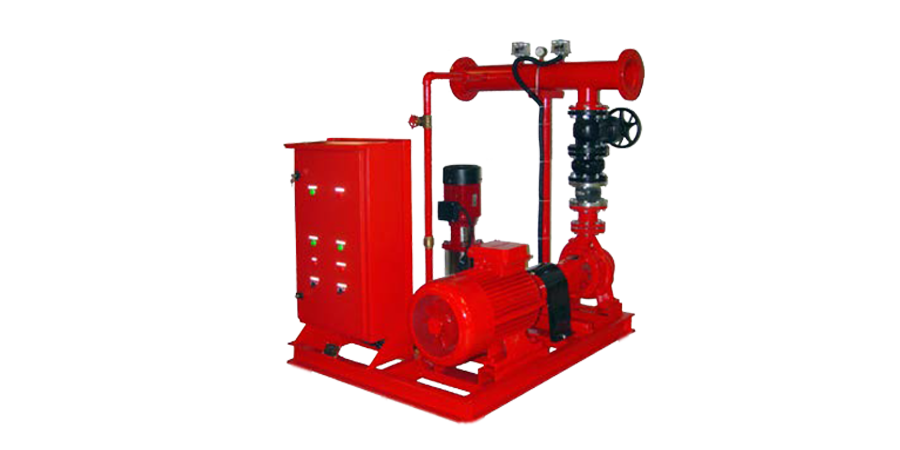

EJ Type Models

EJ Type models are basically Electric Driven and Jockey pump combinations. They consist of Mainly an End Suction Pump driven by Electric motor and no Standby Pumps. It is also combined with a Jockey Pump for maintenance to make a complete packaged skid.

The Complete EJ Type skid, is assembled along with all discharge line accessories and are connected to a Skid Mounted Control Panel.

The Available EJ Type Fire Pump Skid Packages are available in the below flow Capacities.

50, 120, 150, 250, 300, 350, 500, 750 & 1000 GPM.
