Certified Vertical Turbine Fire Pumps
For any interests or questions regarding SFFECO products & services, please click below.
Send EnquiryCentrifugal Vertical Turbine Fire Pumps

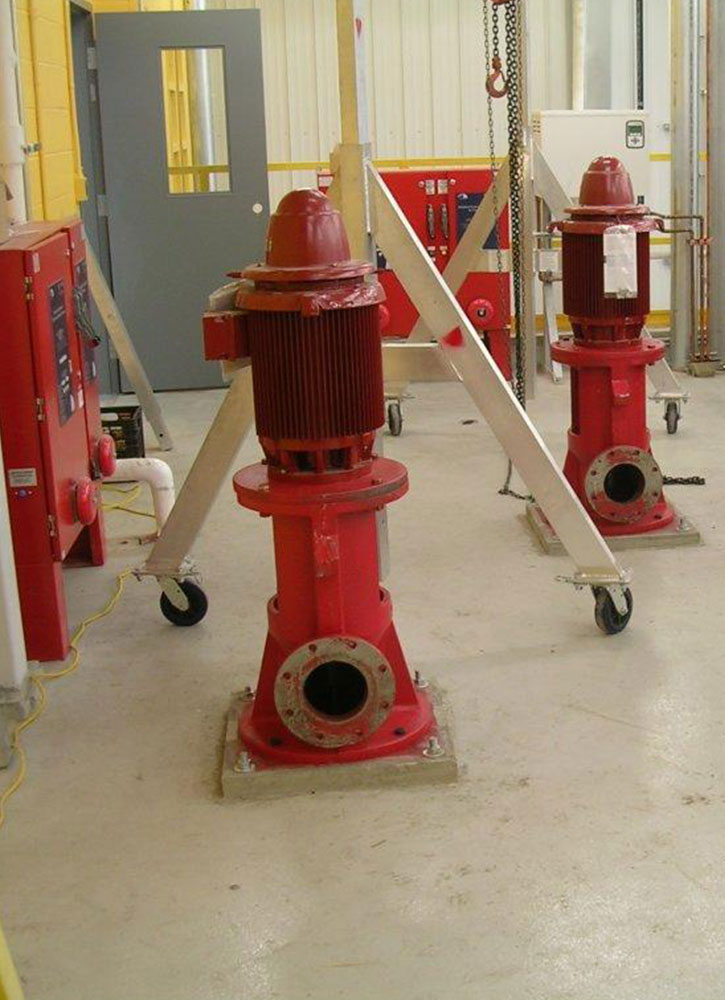

Our Vertical Turbine Fire Pumps are UL Listed and are in compliance to NFPA 20 Design Requirements. The fire Pumps come in a wide range of Flows and pressures ranges. All SFFECO Vertical Turbine Fire Pumps pass through rigorous Hydrostatic & Performance test, as required by global standards. These Fire pumps are available in Electric Motor & Diesel Engine Driven configurations.
Technical Data Table
The range of Vertical Turbine Fire Pumps has a wide array of models, which come in varied flows & pressures. For more detailed information please contact our sales team or you can download our Catalog from below.
NOTE:
- All Pumps are Hydrostatically Tested to minimum of 150% of its Maximum Working Pressure and can withstand Double the Max.Working Pressure.
- All Pumps have Clock-Wise Rotation when viewed from the Driver Side.
- All Pumps are Multistage with 2 stages as minimum requirement.
- “The rated speed marked on the pump can vary within +/-4% of the listed/ approved rated speed example: 3000 RPM pump can be driven with 2900 RPM Drivers.”
| Model No. | Capacity (GPM) | UL,SETSCO & CE Listed Net Pressure (PSI) | Number of Stages | FM Approved Rated Net Pressure (PSI) | Number of Stages | Approx Speed (RPM) |
|---|---|---|---|---|---|---|
| SFP-200-70VT | 200 | 40 - 248 | 2 - 12 | 40 - 289 | 2 - 12 | 1480 |
| SFP-200-70VT | 200 | 48 - 348 | 2 - 10 | 64 - 348 | 2 - 10 | 1480 |
| SFP-200-30VT | 200 | 60 - 305 | 2 - 6 | 2900 | ||
| SFP-200-30VT | 200 | 63 - 323 | 2 - 6 | 2980 | ||
| SFP-200-30VT | 200 | 64 - 327 | 2 - 6 | 3000 |
Product Key Features
- Designed and built as per UL 448 AND NFPA20
- Dynamically Balanced Impeller
- Constructed in variety of metallurgies
- Available in 50 Hz and 60 Hz
- Drivers with gear boxes at electrical and diesel speed
- Designed for easy maintenance
- Open line shaft
--
- Packaged systems available
- Self-Venting Design eliminates vapor lock
- Efficiently Designed Shaft
- Heavy wall thickness
- Sealing arrangement is packing design
- Modular Construction
- Space-saver design
