FC4060 : 57 - 58.5 HP Diesel Engine

UL_Listed_certificate-light
FM_certificate-light
NFPA_certificate-light
Black Stallion

FC4060 : 57-58.5 HP Diesel Engine | UL Listed & FM Approved

FC4060 Diesel Engine is built for performance and durability while keeping in mind that the engines are economical. Black Stallion Diesel Engines are widely used in the firefighting industry. Each engine is built with precision and care keeping in mind the safety of thousands of people across the globe. Black Stallion FC 4060 Diesel Engine is a 4-cylinder engine generating enough power to support a fire pump system in villas compound, industrial and commercial structures. Black Stallion FC4060 Diesel Engine is UL Listed, FM Approved and NFPA 20 Compliant. Each engine goes through a series of quality and performance test before being delivered to ensure the best quality and compliance to all international standards.

Technical Data

  • Engine Type

    In - Line 4 Stroke Cycle,
    Water Cooled 4 Cylinder

  • Cooling System

    Water Cooled

  • Rated Power

    UL: 57 HP
    FM: 58.5 HP

  • Rated Speed

    UL: 2900 RPM
    FM: 2800 | 2900 | 3000 RPM

  • No. of Cylinders

    4 Cylinders

  • Aspiration

    Naturally Aspirated

  • Rotation

    Counter Clock Wise
    (Fronting Fly Wheel)

  • Compression Ratio

    17.5:1

  • Displacement

    3.168 Litres

  • Bore & Stroke

    98 mm x 105 mm

  • Fuel Consumption

    ≤ 225 g/kW-h

  • Voltage

    12 DC

  • Raw Water Inlet Size

    For Cooling Loop
    12. 5 mm

  • Max. Raw Water Pressure

    For Heat Exchanger
    60 PSI

  • Min. Raw Water Flow

    For Heat Exchanger
    UL: 12.5 GPM | FM: 8.5 GPM

  • Jacket Water Heater Power

    1500 W

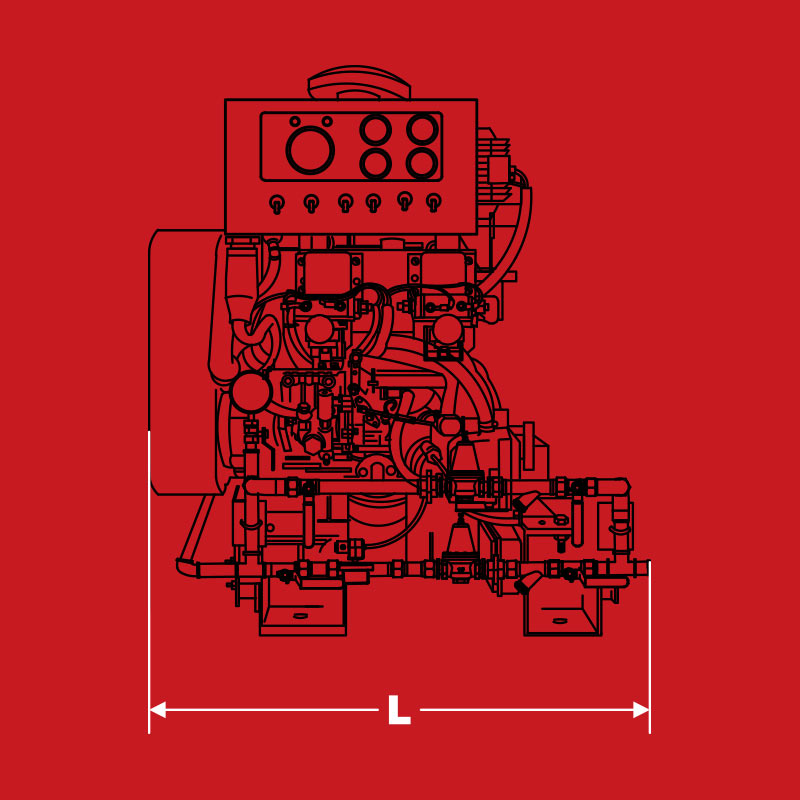

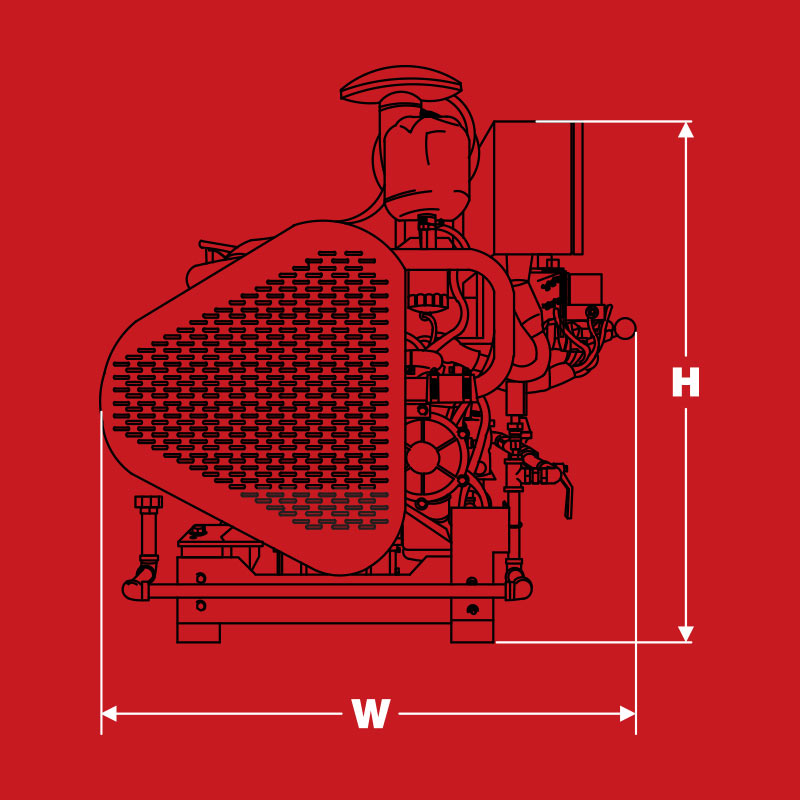

Dimensional Drawings

Dimensional Data

  • Approx. L x W x H

    965 mm x 835 mm x 1195 mm

  • Approx. Weight

    385 Kg

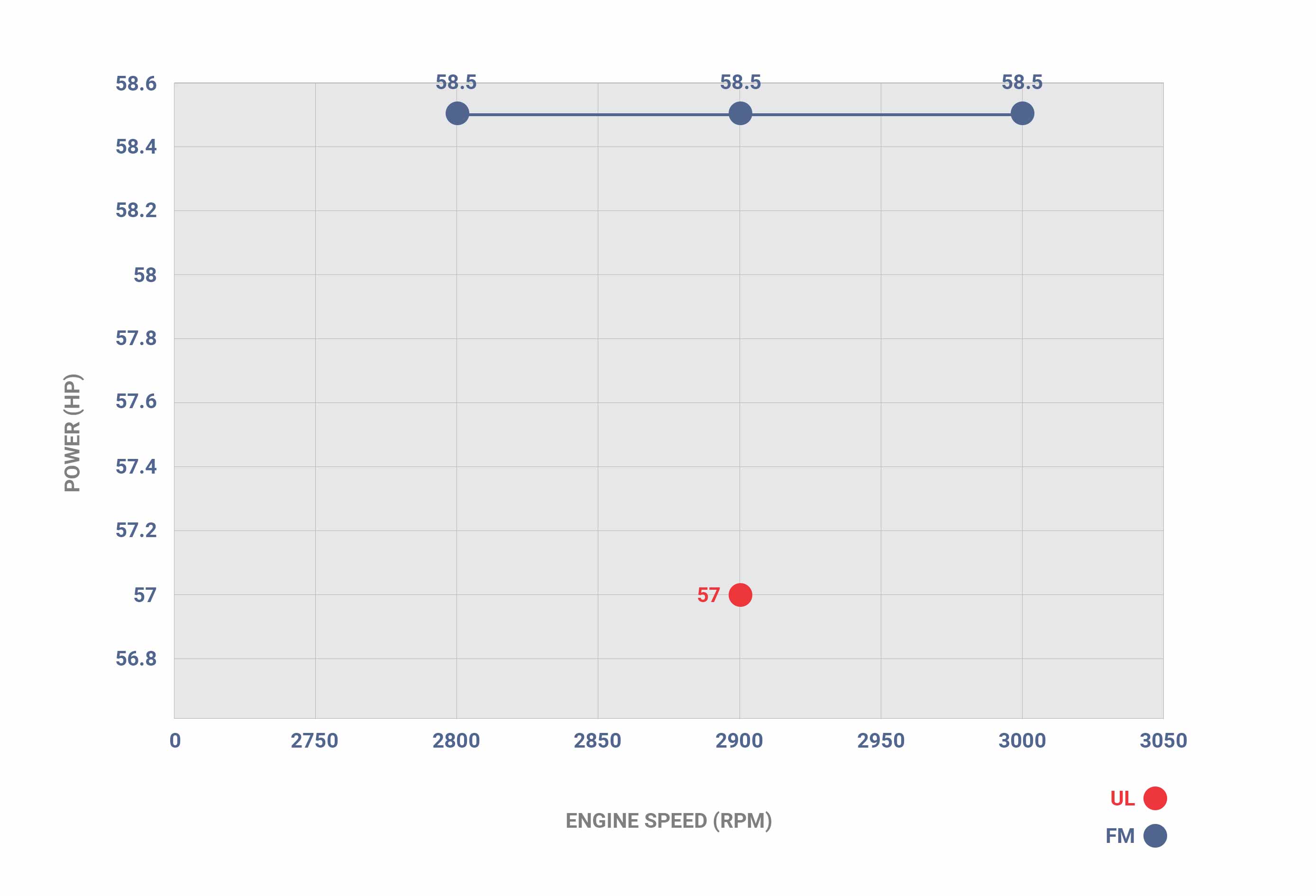

  • Engine Performance Curve

Production Line
