FC4085 : 71-75 HP Diesel Engine

This is the catalog of the full range of Black Stallion Diesel Engines. Please fill the form below to access the file.

UL Certificate - Diesel Engines 0.3: UL Listing Certificate for Black Stallion Diesel Engines
Download File

FM Approval - Diesel Engines 0.2: FM Approval Certificate for Black Stallion Diesel Engines
Download File

FC4085 : 71-75 HP Diesel Engine | UL Listed & FM Approved

FC4085 Diesel Engine is built for performance and durability while keeping in mind that the engines are economical. Black Stallion Diesel Engines are widely used in the firefighting industry. Each engine is built with precision and care keeping in mind the safety of thousands of people across the globe. Black Stallion FC4085 Diesel Engine is a 4-cylinder engine generating enough power to support a fire pump system in villas compound, Industrial and commercial structures. Black Stallion FC4085 Diesel Engine is UL Listed, FM Approved and NFPA 20 Compliant. Each engine goes through a series of quality and performance test before being delivered to ensure the best quality and compliance to all international standards.

Technical Data

Engine Type

In - Line 4 Stroke Cycle,
Water Cooled 4 Cylinder
Cooling System

Water Cooled

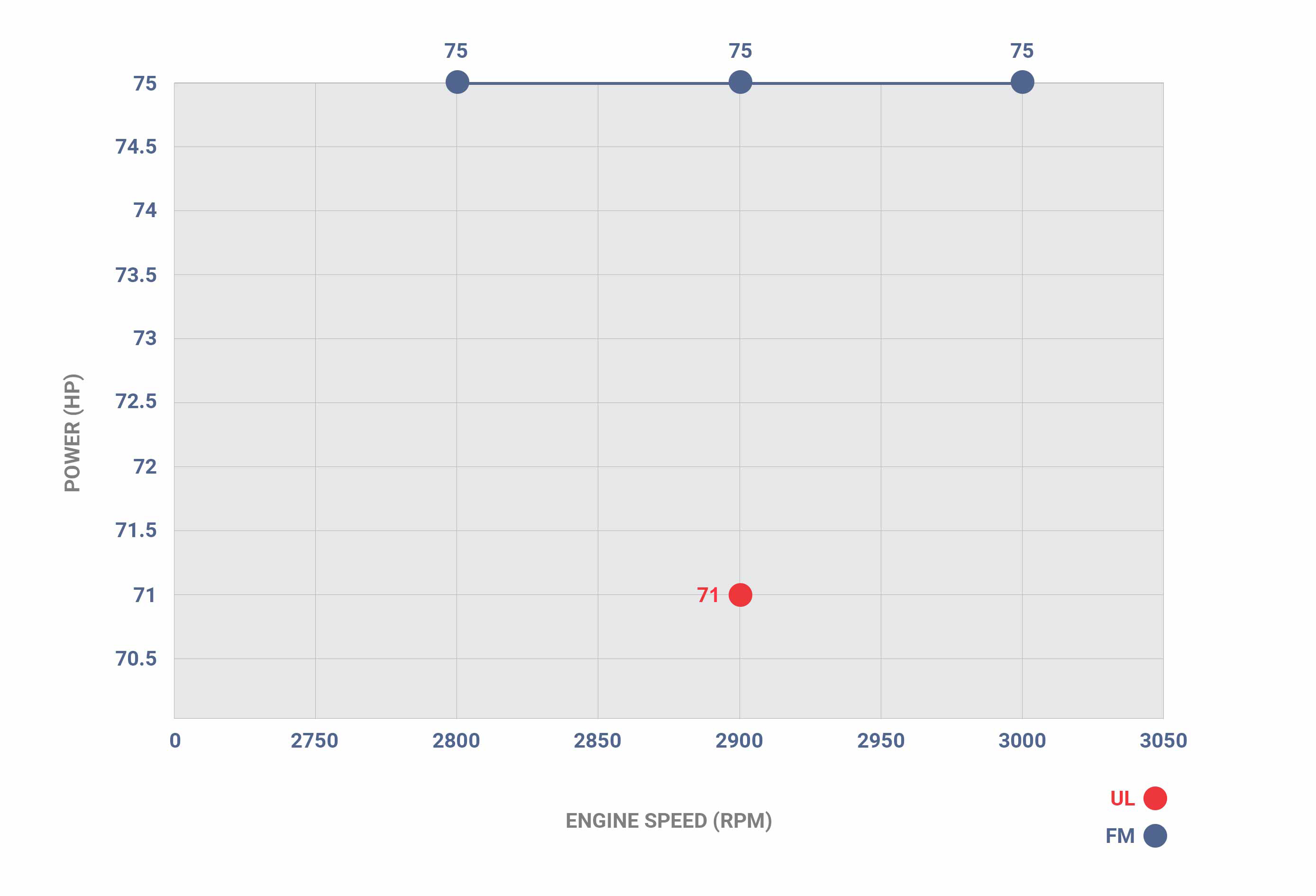

Rated Power

UL: 71 HP
FM: 75 HP
Rated Speed

UL: 2900 RPM
FM: 2800 | 2900 | 3000 RPM
No. of Cylinders

4 Cylinders
Aspiration

Naturally Aspirated
Rotation

Counter Clock Wise
(Fronting Fly Wheel)
Compression Ratio

17.5:1
Displacement

3.856 Litres
Bore & Stroke

102 mm x 118 mm
Fuel Consumption

≤ 230 g/kW-h
Voltage

12 DC
Raw Water Inlet Size

For Cooling Loop
25 mm
Max. Raw Water Pressure

For Heat Exchanger
60 PSI
Min. Raw Water Flow

For Heat Exchanger
UL: 19 GPM | FM: 12.5 GPM
Jacket Water Heater Power

1000 W
